C100 CircleC100R-1
Dimensions
LxWxH: 1.56 x 1.56 x 0.4 m
Weight: 145 kg
Jumping mat: Ø 1.0 m
Max load
Dynamic: 130 kg
Static: 650 kg
Safety
Safe area: Ø 4.0 m
Max fall: 0.9 m
Age: 3+
Certification: EN 1176 (TÜV)
Safe for one person at a time
Warranty
Frame: lifetime
Jumping mat: 3 yrs
Springs: 2 yrs
SRB rubber: 2 yrs
Other parts: 2 yrs
Shipping Dimensions
LxWxH: 1.56 x 0.5 x 1.73 m
Weight: 170 kg
Description
The Lapta C100 is designed for outdoor playgrounds and public spaces, suitable for both children and adults. Built for year-round use in all climates (–35 to +50 ºC), it meets EN1176 safety standards and resists heavy public loads and vandalism.
The classic round shape is the most common design for trampolines and offers the best spring performance.
The jumping mat is the heart of the trampoline. Lapta’s mat design avoids steel cables and moving parts that corrode, fatigue, or wear out, while being lighter than plastic alternatives. The result is a more dynamic, longer-lasting trampoline, responsive to both lightweight children and adults.
Perforations in the mat are no larger than 8 mm, preventing small objects from falling underneath while allowing airflow and drainage.
The trampoline comes without frame Impact Protection and is intended for installation under seamless rubber playground surfacing.
Zero Wear Frame
Lapta's Zero Wear Frame is an innovative solution that eliminates frame wear. It uses removable spring seat modules that can be replaced when needed, extending the trampoline's life. Each module is fitted with bronze bushings to reduce friction and prevent squeaking.
Blueprint
Projections and dimensions

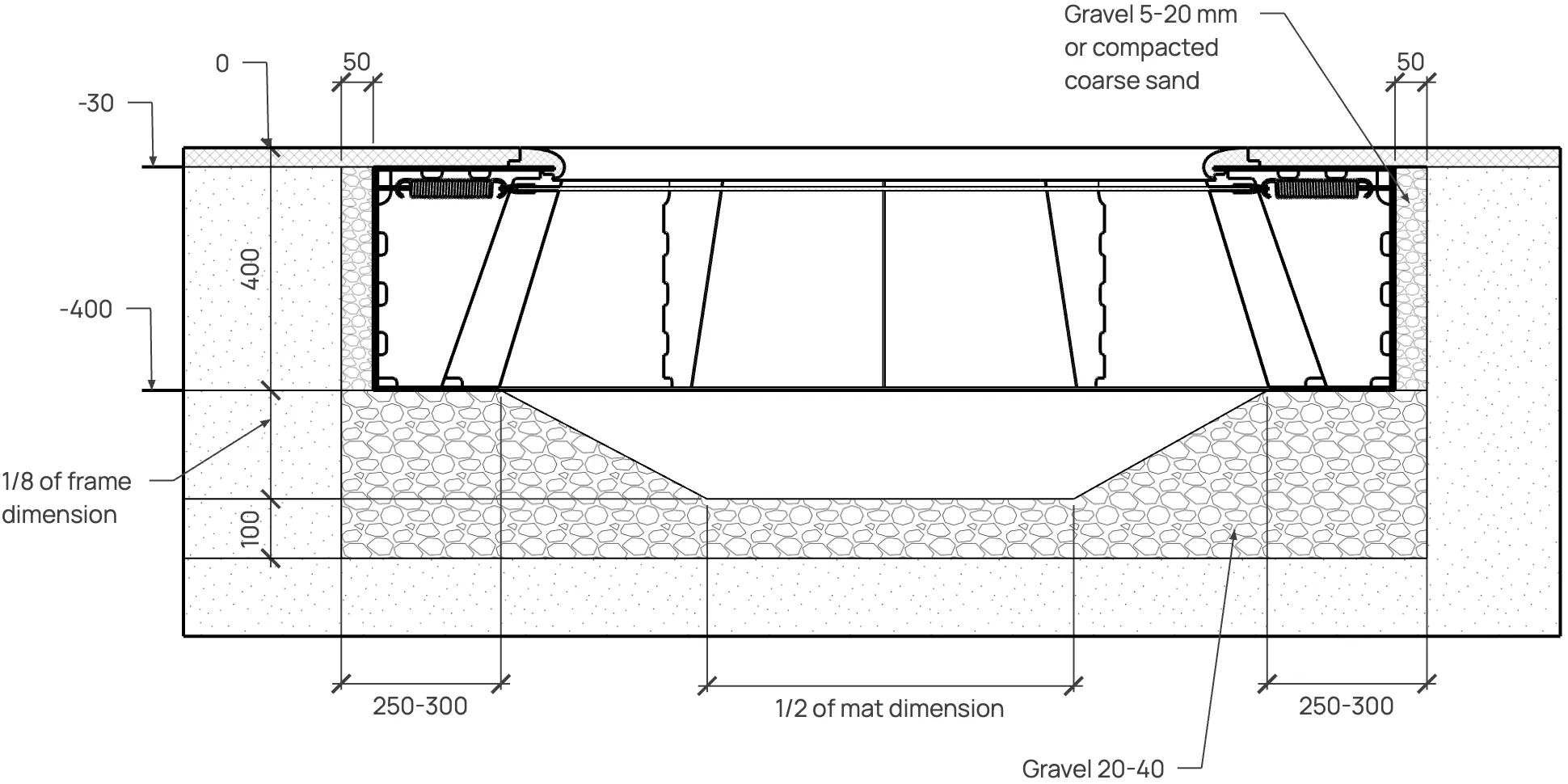

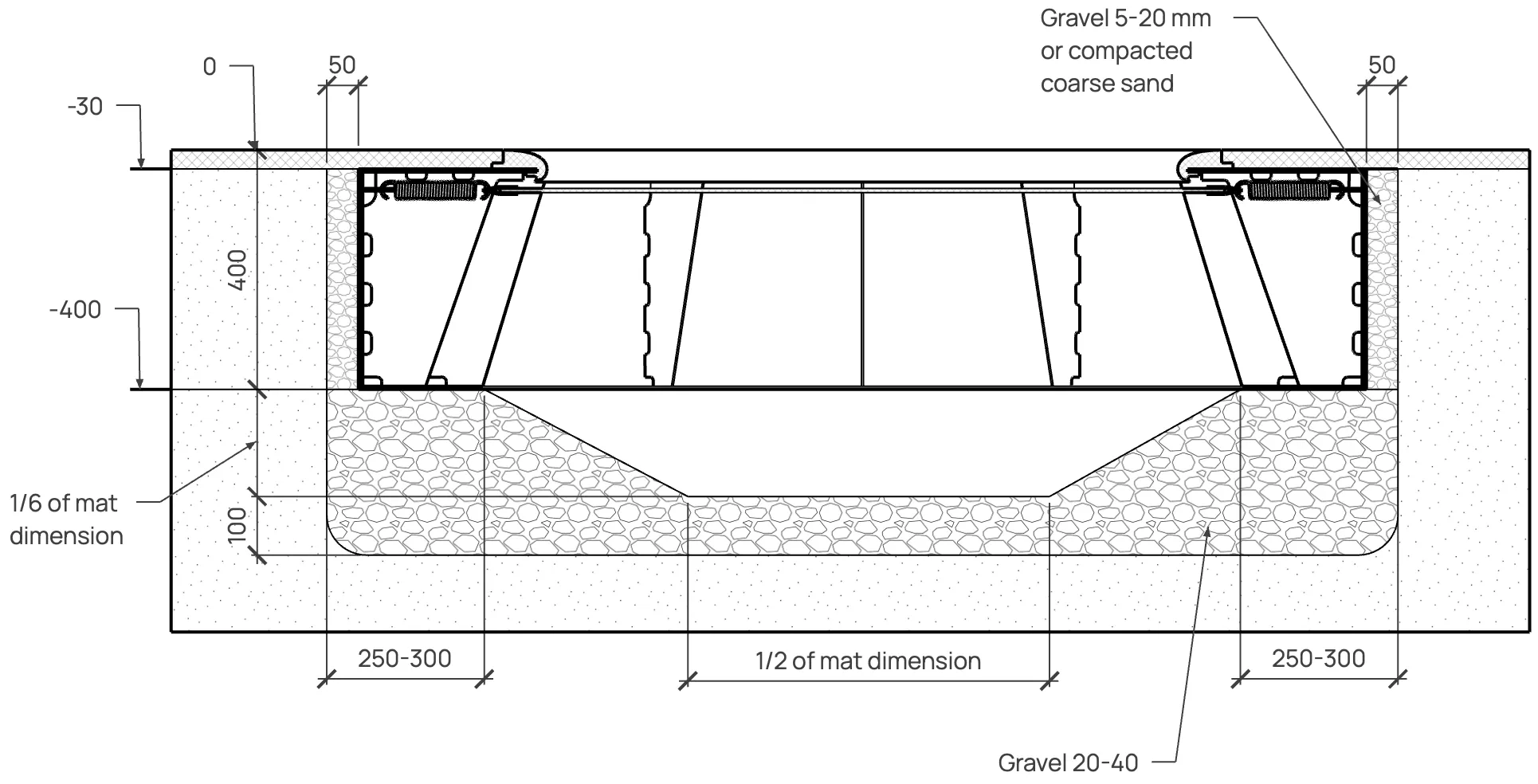

Installation
All-year round in zero-to-low snow areas

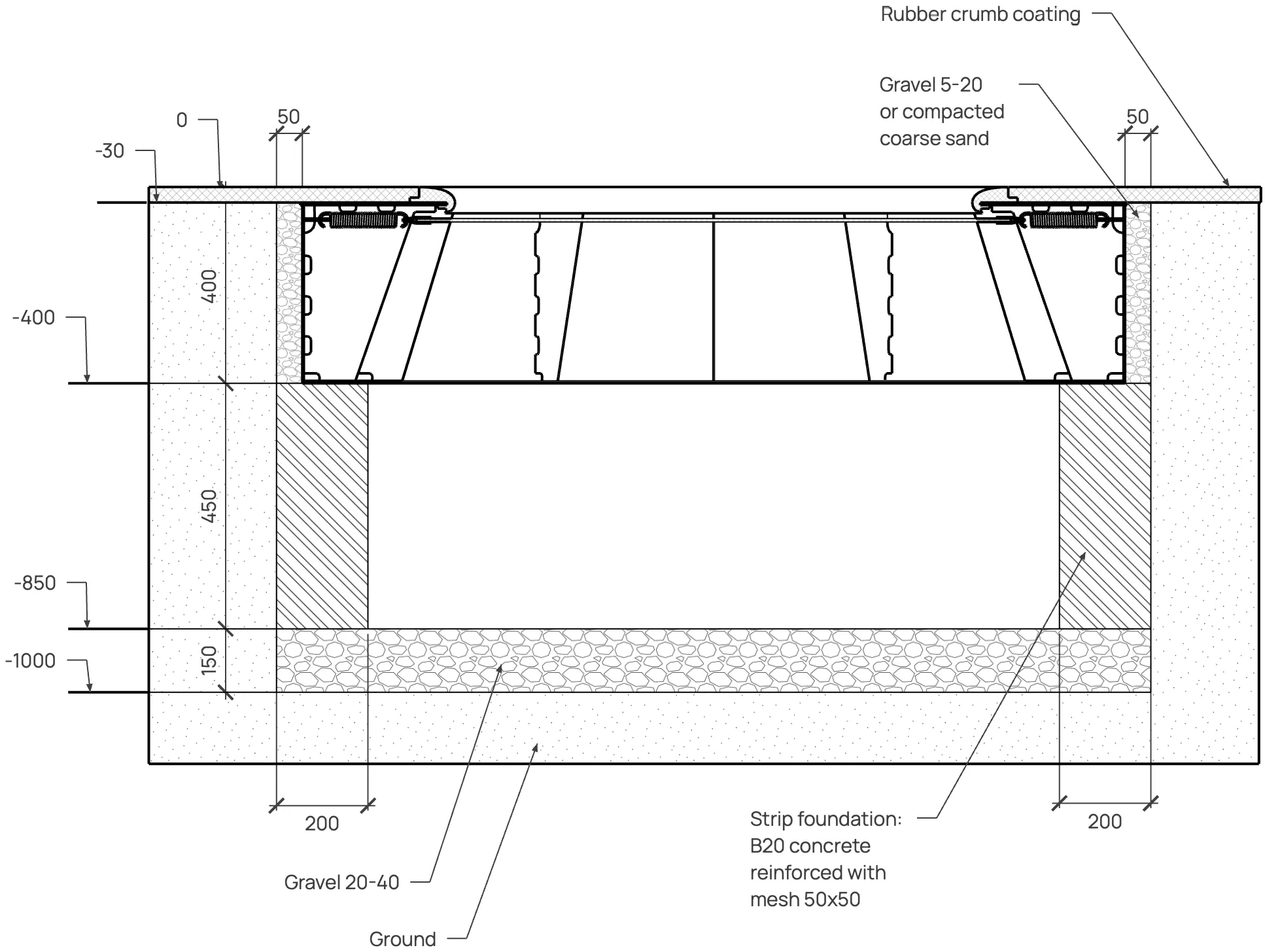

Snow Installation
Installation in high snow areas
Technical details
Frame: welded steel structure (3–4 mm thick), hot-dip galvanized
Springs seating: replaceable modules + bronze bushings
Edging: resilient rubber edging, protecting against injuries and resistant to scooters; provides a transition to the seamless surface, height 30 mm.
Jumping mat: solid frost-resistant rubber, 7–8 mm thick, reinforced with polyester fiber, with an anti-slip tread and drainage holes.
Mat coating: none
Springs: cylindrical, galvanized, diameter 29 mm, length 145 mm., 42 pcs.
Impact protection: none
Lighting: none
Hilltramp: none
Installation type: for in-ground installation with mounting under the seamless playground surface.
Safety space
Free zone with radius 1.5 m must be provided around the trampoline, measured from the edge of the jumping mat. This zone must remain free of other play equipment, trees, foreign objects, as well as walkways, paths, and pedestrian routes. It is recommended to use seamless rubber surfacing, natural grass, or other impact-absorbing surfacing providing fall protection up to 1 m as the free zone covering. For loose-fill surfacing, the trampoline must be installed with Hilltramp option to prevent frame exposure as the surfacing settles and ingress of surfacing particles into the trampoline. When installing a group of trampolines not separated by other play or landscape elements, walkways, or pedestrian routes, the free zones may overlap. For a group of trampolines installed in a line the safety zone in the longitudinal direction must be at least 3 m from the edge of the jumping mat. The space up to 3.5 m above the trampoline must also remain free of trees, power lines, and other obstacles.
